Dynamic's single line moving messages, 'Dynamic Messages', are the perfect way to get your message across. Whatever your budget and size requirements are, Dynamic have the perfect display for you. All displays are available with a choice of both LED colour and brightness to suit any situation. The displays are so easy to program that they guarantee you will be able to program your first message within 2 minutes of switching your display on!!
21 Character with 4"/100mm high display at one of the ticket booths at Thorpe Park (Click for more info) (supplied via Jayex)
16 Character with 10"/250mm high display at Tilbury Container Services, used to call lorries from the car park. Installed with bracketery to angle the display down. (supplied via Jayex)
6 metre long, 32 Character with 10"/250mm high display, Ultra bright blue LEDs. (supplied via Jayex)
21 Character with 4"/100mm high display, incorporated into a sign contractors display. (supplied via LED Systems)
A pair of 3m x 250mm DynaVisions installed at a Theatre/Cinema. Displays have either 1 line of 16 x 250mm characters or 2 lines of 32 x 100mm characters. (supplied via Jayex)
High resolution moving messages

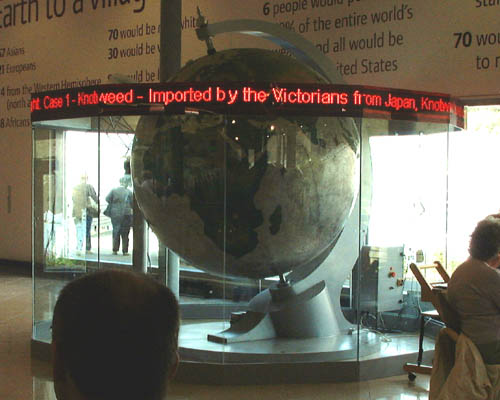

These displays are located in the visitor centre at the Eden Project in Cornwall. Dynamic worked closely with exhibit designer Will Jackson to produce 12 high resolution displays linked to the control syste for the giant globe, messages scroll through 360 degrees. The displays reinforce an audio soundtrack which relays one of 8 different 'stories' about plants, the giant globe revolves in sync with the story and a huge hand points out the location of featured countries. The displays are capable of displaying any mix of Windows TrueType fonts or graphic images.

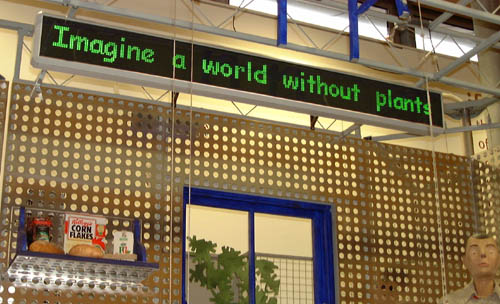

Another display for Will Jacksons work at the Eden Project. This one is on his Plant Takeaway exhibit, over the course of 90 seconds the effect of removing plants from our life is demonstrated in a highly animated and amusing manner (pretty devestating it turns out). The display was retrofitted to countdown to the next performance and to explain the actions whilst the exhibit tears itself to bits!
Display Specifications
| General Specifications |
| Display Features: |
Scroll in all 4 directions, Wipe in all 4 directions, Curtains open or close, Starburst, Shoot, Rotate, Flash. |
| Animated Graphics: |
Pacman, Wheel, Bouncy ball, Heart, Car, Bike, Boat, House, Shoes, Phone, Arrows in 4 directions |
| Keyboard Control Option: |
Simple Infra-red remote control gives access to all functions. |
| Computer Control Option: |
Powerful, easy to use Windows software.
Choice of RS232, RS485, Modem or GSM (cellular) link.
Up to 256 displays in each network segment. |
| Message Memory Size: |
96,000 characters. |
| Message Retention: |
3 years without power. |
| Case construction: |
Anodised aluminium extrusion body
Anti-glare Acrylic/Polycarbonate fascia
Suitable for wall / ceiling mounting. |
| Power: |
230 / 110 V AC operation
Internal power supply
IEC inlet
Supplied with 2m flex and fitted plug. |
| Operating conditions: |
0°C to 50°C ambient temperature
32°F to 120°F ambient temperature
0 to 90% humidity (non-condensing) |
| 30mm (1.2") High Characters - 1 x 3mm LED per pixel |
| Model |
Case |
Characters to View |
Resolution |
Power |
Weight |
| DM30-13 |
425mm Wide
100mm High
70mm deep |
13 |
80 x 7 |
56W Max.
22W Nom. |
5Kg |
| DM30-26 |
825mm Wide
100mm High
70mm deep |
26 |
160 x 7 |
112W Max.
44W Nom. |
9Kg |
| DM30-40 |
1225mm Wide
100mm High
70mm deep |
40 |
240 x 7 |
168W Max.
67W Nom. |
13Kg |
| DM30-53 |
1625mm Wide
100mm High
70mm deep |
53 |
320 x 7 |
224W Max.
89W Nom. |
17Kg |
| DM30-66 |
2025mm Wide
100mm High
70mm deep |
66 |
400 x 7 |
280W Max.
112W Nom. |
21Kg |
For other configurations or imperial measurements please contact us.
| 50mm (2") High Characters - 1 x 5mm LED per pixel |
| Model |
Case |
Characters to View |
Resolution |
Power |
Weight |
| DM50-10 |
510mm Wide
120mm High
70mm Deep |
10 |
64 x 7 |
45W Max.
18W Nom. |
6Kg |
| DM50-16 |
753mm Wide
120mm High
70mm Deep |
16 |
96 x 7 |
67W Max.
26W Nom. |
8.5Kg |
| DM50-21 |
997mm Wide
120mm High
70mm Deep |
21 |
128 x 7 |
90W Max.
36W Nom. |
11Kg |
| DM50-26 |
1241mm Wide
120mm High
70mm Deep |
26 |
160 x 7 |
112W Max.
44W Nom. |
13.5Kg |
| DM50-32 |
1485mm Wide
120mm High
70mm Deep |
32 |
192 x 7 |
134W Max.
53W Nom. |
16Kg |
| DM50-37 |
1729mm Wide
120mm High
70mm Deep |
37 |
224 x 7 |
157W Max.
62W Nom. |
18.5Kg |
| DM50-42 |
1973mm Wide
120mm High
70mm Deep |
42 |
256 x 7 |
179W Max.
71W Nom. |
21Kg |
| DM50-48 |
2216mm Wide
120mm High
70mm Deep |
48 |
288 x 7 |
202W Max.
80W Nom. |
23.5Kg |
For other configurations or imperial measurements please contact us.
| 75mm (3") High Characters - 1 x 5mm LED per pixel |
| Model |
Case |
Characters to View |
Resolution |
Power |
Weight |
| DM75-16 |
1115mm Wide
150mm High
70mm Deep |
16 |
96 x 7 |
67W Max.
26W Nom. |
10Kg |
| DM75-32 |
2213mm Wide
150mm High
70mm Deep |
32 |
192 x 7 |
134W Max.
53W Nom. |
19Kg |
| DM75-48 |
3310mm Wide
150mm High
70mm Deep |
48 |
288 x 7 |
202W Max.
80W Nom. |
28Kg |
For other configurations or imperial measurements please contact us.
| 100mm (4") High Characters - 1 x 5mm LED per pixel |
| Model |
Case |
Characters to View |
Resolution |
Power |
Weight |
| DM100-16 |
1477mm Wide
180mm High
70mm Deep |
16 |
96 x 7 |
67W Max.
26W Nom. |
12Kg |
| DM100-32 |
2940mm Wide
180mm High
70mm Deep |
32 |
192 x 7 |
134W Max.
53W Nom. |
23.5Kg |
| DM100-48 |
4403mm Wide
180mm High
70mm Deep |
48 |
288 x 7 |
202W Max.
80W Nom. |
35Kg |
For other configurations or imperial measurements please contact us.
| 150mm (6") High Characters - 3 x 5mm LEDs per pixel |
| Model |
Case |
Characters to View |
Resolution |
Power |
Weight |
| DM150-16 |
2215mm Wide
250mm High
70mm Deep |
16 |
96 x 7 |
202W Max.
80W Nom. |
17Kg |
| DM150-24 |
3319mm Wide
250mm High
70mm Deep |
24 |
144 x 7 |
302W Max.
120W Nom. |
25Kg |
| DM150-32 |
4423mm Wide
250mm High
70mm Deep |
32 |
192 x 7 |
403W Max.
161W Nom. |
33Kg |
For other configurations or imperial measurements please contact us.
If you need a larger character then take a look at Dynamic's range of DynaVision full graphic screens. DynaVision sizes start at 250mm (10") and go up in steps of 250mm (10"), it has fantastic text capabilities including full support for ANY Windows font at any size that fits!!
